SOLAR ROAD STUDS / ALUMINUM
NK-RS-D1
solar road stud.
An aluminum solar road stud identified in the supplied NOKIN model sheet. Review the configuration, source-stated parameters and outstanding questions before specifying the product.
- Body
- High-pressure cast aluminum alloy
- Solar panel
- Monocrystalline · 2.5 V / 0.25 W
- LED configuration
- 4 or 6 pieces · variant to be confirmed
Parameters below are transcribed from the supplied sheet. Performance conditions, configuration and certificates require confirmation.
01 / PRODUCT OVERVIEW
Start with the
configuration.
The NK-RS-D1 sheet describes a solar-powered road stud with a high-pressure cast aluminum-alloy body and a monocrystalline solar panel. It states daytime charging and automatic night operation.
Two battery branches, two LED-count options and several LED colors appear in the source. These are alternatives to discuss, rather than one combined guaranteed configuration.

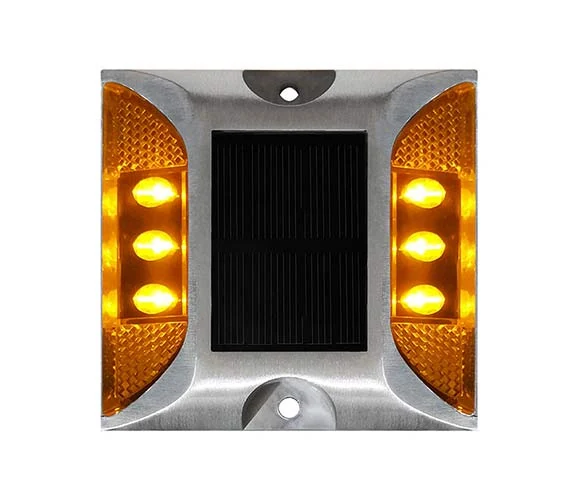

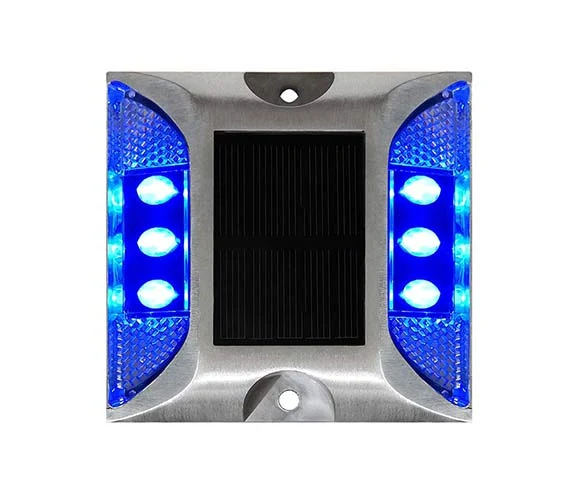

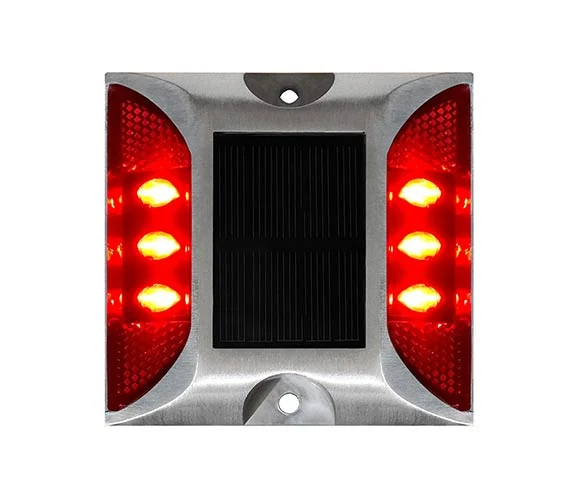

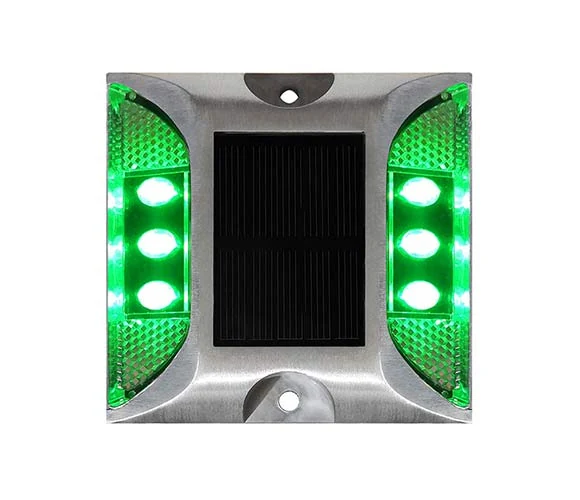

The product photographs show the supplied road stud in white, yellow, red, blue and green light. Their relationship to current orderable variants must be confirmed.
02 / APPLICATION FIT
Confirm the
conditions of use.
Application mapping pending
No installation manual or model-specific project record was supplied for NK-RS-D1. The general application photographs are not presented as proof of this model's installation.
Provide the road surface, traffic conditions, destination requirements, lighting mode and installation constraints when making an inquiry. Suitability must be assessed against the exact configuration.
View supplied application context →03 / SPECIFICATIONS & VARIANTS
Read the details.
Confirm the basis.
These are source-stated values from the NK-RS-D1 parameter screenshot. Ambiguous units, alternatives and unsupported performance claims stay marked. No certificate or rating is independently verified here.
| Field | Source-stated value | Status / conditions |
|---|---|---|
| Body material | High-pressure cast aluminum alloy | Material stated in supplied model sheet. |
| Solar panel | Monocrystalline · 2.5 V / 0.25 W | Configuration to be confirmed for the quotation. |
| Battery — Ni-MH | 1.2 V / 600 mAh | The sheet describes high-temperature resistance; temperature range and test evidence are not supplied. |
| Battery — lithium | Source text: “3.2V/500MA” | Unit is ambiguous. Do not treat 500MA as a confirmed capacity. Country-of-origin claim requires evidence. |
| LED | Diameter 5 mm · 4 or 6 pieces | Variant mapping and delivered configuration pending. “Ultra bright” is a source description, not a measured rating. |
| LED colors | Red, yellow, green, blue, white | Availability and configuration to be confirmed. |
| Working mode | Daytime charging; automatic night operation | Stated in the source sheet; operating thresholds are not supplied. |
| Working hours — blinking | Ni-MH: 140 h · Lithium: 130 h | Source-stated figures only. Charge, environment and test conditions are not supplied. |
| Working hours — constant | Ni-MH: 40 h · Lithium: 35 h | Source-stated figures only; not a runtime guarantee. |
| Life span | Ni-MH: 2 years · Lithium: 5 years | Source-stated life figures. These are not warranty terms; test basis pending. |
| Visual distance | Source text: >800 m | Visibility conditions and method pending. Not a guaranteed distance. |
| Water resistance | Source text: IP68 | Report, test conditions and exact model scope not supplied. |
| Load resistance | Source text: >20T | Unit definition, test method and applicable conditions pending. |
| Dimensions | L104 × W104 × H20 mm + 40 mm | Interpretation of +40 mm and shank/configuration mapping pending. |
| Certificates mentioned | CE · FCC · RoHS · IP68 | Mentions transcribed from the sheet, not verified certificates. Original documents and scope are required. |
“Life span” is kept separate from warranty. The source does not provide a measured brightness rating, operating temperature range, acceptance criteria or test reports.
04 / DIMENSIONS & PACKING
Plan the
physical details.
The source lists dimensions of L104 × W104 × H20 mm + 40 mm. A dimensional drawing and confirmation of the +40 mm / shank relationship are still required.
| Configuration label | Packing quantity | Carton dimensions | Carton weight |
|---|---|---|---|
| Without shank | 2 pieces / box; 60 pieces / carton | 58.5 × 24.5 × 18.5 cm | 21 kg / carton |
| With shank | 1 piece / box; 45 pieces / carton | 56.5 × 34.8 × 23.6 cm | 18.5 kg / carton |
Packing labels and numbers are retained from the source sheet. Final packing, gross/net-weight basis and shipment arrangement require confirmation. No installation drawing or packaging photograph is available.
05 / COMPATIBILITY & CONSTRAINTS
Resolve the
open questions.
- Confirm Ni-MH or lithium, exact capacity unit and the current battery specification.
- Confirm 4-LED / 6-LED mapping, color, working mode and installation configuration.
- Obtain a dimensional drawing, surface preparation, mounting method, adhesive requirements and installation limits.
- Request test conditions behind runtime, visibility, IP68 and load-resistance figures before using them as acceptance requirements.
06 / DOCUMENTATION
Evidence must match
the model.
The source sheet mentions CE, FCC, RoHS and IP68. No certificate originals, issuing bodies, report numbers or applicable model scope were supplied.
These mentions are not displayed as certification badges. Ask for current documents covering the configuration under discussion; downloadable files will be added only when real documents are available.
Supporting documents pending
07 / ORDER & SERVICE SCOPE
Agree on the terms.
NOKIN's company profile states that OEM/ODM services are available. Model-specific customization options, sample arrangements, MOQ, lead time, capacity, warranty and after-sales terms are not supplied.
Share your requirements for an itemized discussion. No production, delivery or warranty commitment is made in this draft.
Discuss OEM / ODM requirements →08 / RELATED RANGE
Continue your selection.
Browse the approved solar and reflective product groups. Other model details are outside the current confirmed queue.
